Technical characteristics

Frame Range

H80~450

Power Range

0.55~1000kW

Rated Voltage

380V(Special voltage customization)

Rated Frequency

50Hz(Special frequency customization)

Efficiency Level

IE4

Poles

2、4、6、8極

Protection DegreeIP55Cooling ModeIC411
Insulation ClassFOperation ModeS1
Installation ModeB3、B5、B35、B14、B34、V1Wiring ModeY/?

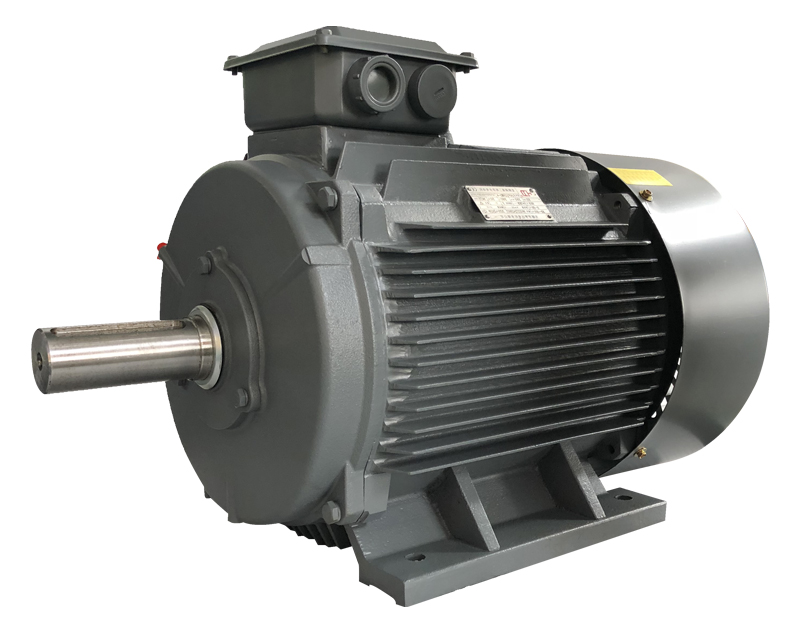

YE4 series three-phase asynchronous motor

YE4 series motor is a fully enclosed, self fan cooled squirrel cage three-phase asynchronous motor made of new materials, new technology and optimized design. This series of motors meet IE4 energy efficiency requirements in iec60034-30-2014 and ye4 performance requirements in JB / t13299-2017. Ye4 series motors have high efficiency, large starting torque, low noise and mature cooling and heat dissipation conditions. This series of motors are general-purpose three-phase asynchronous motors, which can be used to drive all kinds of general mechanical equipment, such as compressors, fans, water pumps and other mechanical equipment. They can also be used in petroleum, chemical industry, medicine, mining and other environments.

Operating conditions
  • -15°C~+40°C
    Ambient air temperature
  • ≤90% (At25°C)
    Monthly average maximum relative humidity of ambient air
  • ≤1KM
    Altitude
  • ModelPolesRated PowerCurrentRated SpeedRated TorqueEfficiencyPower FactorNoise Protection DegreeInsulation
    Class
    DutyConnectionFrequencyRated
    Voltage
    kWAr/minN·mηcosΦdBHzV
    YE4-80M1-220.751.6 29002.4 83.5 0.83 62 IP55FS1Y50380
    YE4-80M2-221.12.4 29003.5 85.2 0.83 62 IP55FS1Y50380
    YE4-90S-221.53.1 28904.8 86.5 0.85 67 IP55FS1Y50380
    YE4-90L-222.24.4 28957.0 88.0 0.86 67 IP55FS1Y50380
    YE4-100L-2235.9 29059.6 89.1 0.87 74 IP55FS1Y50380
    YE4-112M-2247.7 291012.7 90.0 0.88 77 IP55FS1?50380
    YE4-112L-225.510.4 291017.5 90.9 0.88 77 IP55FS1?50380
    YE4-132S1-225.510.4 295017.5 90.9 0.88 79 IP55FS1?50380
    YE4-132S2-227.514.0 295023.9 91.7 0.89 79 IP55FS1?50380
    YE4-132S3-22916.7 295028.7 92.1 0.89 79 IP55FS1?50380
    YE4-132M-221120.3 295035.0 92.6 0.89 79 IP55FS1?50380
    YE4-132L-221527.4 295047.8 93.3 0.89 79 IP55FS1?50380
    YE4-160M1-221120.3 295535.0 92.6 0.89 81 IP55FS1?50380
    YE4-160M2-221527.4 295547.8 93.3 0.89 81 IP55FS1?50380
    YE4-160L-2218.533.7 295558.9 93.7 0.89 81 IP55FS1?50380
    YE4-160L2-222240.0 295570.0 94.0 0.89 81 IP55FS1?50380
    YE4-180M0-2218.533.7 297058.9 93.7 0.89 83 IP55FS1?50380
    YE4-180M-222240.0 297070.0 94.0 0.89 83 IP55FS1?50380
    YE4-180L1-222545.3 297079.6 94.2 0.89 83 IP55FS1?50380
    YE4-180L2-223054.2 297095.5 94.5 0.89 83 IP55FS1?50380
    YE4-180LX-223766.6 2970117.8 94.8 0.89 83 IP55FS1?50380
    YE4-200L1-223054.2 297595.5 94.5 0.89 84 IP55FS1?50380
    YE4-200L2-223766.6 2975117.8 94.8 0.89 84 IP55FS1?50380
    YE4-200LX-224580.9 2975143.3 95.0 0.89 84 IP55FS1?50380
    YE4-225M-224580.9 2975143.3 95.0 0.89 86 IP55FS1?50380
    YE4-225M2-225598.5 2975175.1 95.3 0.89 86 IP55FS1?50380
    YE4-250M-225598.5 2985175.1 95.3 0.89 89 IP55FS1?50380
    YE4-250M2-2275133.9 2985238.8 95.6 0.89 89 IP55FS1?50380
    YE4-280S-2275133.9 2985238.8 95.6 0.89 91 IP55FS1?50380
    YE4-280M-2290160.4 2985286.5 95.8 0.89 91 IP55FS1?50380
    YE4-280L-22110195.6 2985350.2 96.0 0.89 91 IP55FS1?50380
    YE4-280M2-22110195.6 2985350.2 96.0 0.89 91 IP55FS1?50380
    YE4-280MX-22132234.2 2985420.2 96.2 0.89 91 IP55FS1?50380
    YE4-315S-22110195.6 2990350.2 96.0 0.89 92 IP55FS1?50380
    YE4-315M-22132234.2 2990420.2 96.2 0.89 92 IP55FS1?50380
    YE4-315L1-22160283.6 2990509.3 96.3 0.89 92 IP55FS1?50380
    YE4-315L12-22185327.6 2990588.9 96.4 0.89 92 IP55FS1?50380
    YE4-315L2-22200353.8 2990636.7 96.5 0.89 92 IP55FS1?50380
    YE4-315LX1-22220384.9 2990700.3 96.5 0.90 92 IP55FS1?50380
    YE4-315LX2-22250432.6 2990795.8 96.5 0.91 92 IP55FS1?50380
    YE4-355M0-22220384.9 2990700.3 96.5 0.90 92 IP55FS1?50380
    YE4-355M-22250432.6 2990795.8 96.5 0.91 97 IP55FS1?50380
    YE4-355L0-22280484.5 2990891.3 96.5 0.91 97 IP55FS1?50380
    YE4-355L-22315545.0 29901002.8 96.5 0.91 97 IP55FS1?50380
    YE4-355X1-22355621.1 29901130.1 96.5 0.90 97 IP55FS1?50380
    YE4-355X2-22375656.0 29901193.8 96.5 0.90 97 IP55FS1?50380
    YE4-400M1-22355621.1 29851130.1 96.5 0.90 97 IP55FS1?50380
    YE4-400M2-22400699.8 29851273.3 96.5 0.90 97 IP55FS1?50380
    YE4-400M3-22450787.2 29851432.5 96.5 0.90 97 IP55FS1?50380
    YE4-400L1-22500874.7 29851591.7 96.5 0.90 97 IP55FS1?50380
    YE4-400L2-22560968.9 29851782.7 96.5 0.91 97 IP55FS1?50380
    YE4-400L3-226301090.0 29852005.5 96.5 0.91 97 IP55FS1?50380
    YE4-450X1-227101228.5 29902260.2 96.5 0.91 97 IP55FS1?50380
    YE4-450X2-228001384.2 29902546.7 96.5 0.91 97 IP55FS1?50380
    YE4-450X3-229001557.2 29902865.0 96.5 0.91 97 IP55FS1?50380
    YE4-450X4-2210001711.4 29903183.3 96.5 0.92 97 IP55FS1?50380
    YE4-80M1-440.551.3 14403.5 83.9 0.74 56 IP55FS1Y50380
    YE4-80M2-440.751.8 14404.8 85.7 0.74 56 IP55FS1Y50380
    YE4-90S-441.12.6 14507.0 87.2 0.75 59 IP55FS1Y50380
    YE4-90L-441.53.4 14509.6 88.2 0.76 59 IP55FS1Y50380
    YE4-100L1-442.24.7 146014.0 89.5 0.79 64 IP55FS1Y50380
    YE4-100L2-4436.3 146019.1 90.4 0.80 64 IP55FS1Y50380
    YE4-112M-4448.3 146025.5 91.1 0.80 65 IP55FS1?50380
    YE4-112L-445.511.4 146035.0 91.9 0.80 65 IP55FS1?50380
    YE4-132S-445.511.4 147535.0 91.9 0.80 71 IP55FS1?50380
    YE4-132M-447.515.2 147547.8 92.6 0.81 71 IP55FS1?50380
    YE4-132M2-44918.0 147557.3 92.9 0.82 71 IP55FS1?50380
    YE4-132L1-441121.6 147570.0 93.3 0.83 71 IP55FS1?50380
    YE4-132L2-441528.9 147595.5 93.9 0.84 71 IP55FS1?50380
    YE4-160M-441121.6 147570.0 93.3 0.83 73 IP55FS1?50380
    YE4-160M1-441325.1 147582.8 93.6 0.84 73 IP55FS1?50380
    YE4-160L-441528.9 147595.5 93.9 0.84 73 IP55FS1?50380
    YE4-160L2-4418.535.1 1475117.8 94.2 0.85 73 IP55FS1?50380
    YE4-180M0-441732.3 1480108.2 94.1 0.85 76 IP55FS1?50380
    YE4-180M-4418.535.1 1480117.8 94.2 0.85 76 IP55FS1?50380
    YE4-180L0-4420.538.8 1480130.5 94.4 0.85 76 IP55FS1?50380
    YE4-180L-442241.6 1480140.1 94.5 0.85 76 IP55FS1?50380
    YE4-180L2-443056.5 1480191.0 94.9 0.85 76 IP55FS1?50380
    YE4-180LX-443769.5 1480235.6 95.2 0.85 76 IP55FS1?50380
    YE4-200L-443056.5 1485191.0 94.9 0.85 76 IP55FS1?50380
    YE4-200L2-443769.5 1485235.6 95.2 0.85 76 IP55FS1?50380
    YE4-225S-443769.5 1485235.6 95.2 0.85 78 IP55FS1?50380
    YE4-225M-444584.3 1485286.5 95.4 0.85 78 IP55FS1?50380
    YE4-225M2-4455101.5 1485350.2 95.7 0.86 78 IP55FS1?50380
    YE4-250M-4455101.5 1490350.2 95.7 0.86 79 IP55FS1?50380
    YE4-250M2-4475136.4 1490477.5 96.0 0.87 79 IP55FS1?50380
    YE4-250XM-4475136.4 1490477.5 96.0 0.87 79 IP55FS1?50380
    YE4-250MX-4490161.7 1490573.0 96.1 0.88 79 IP55FS1?50380
    YE4-280S-4475136.4 1490477.5 96.0 0.87 80 IP55FS1?50380
    YE4-280M-4490161.7 1490573.0 96.1 0.88 80 IP55FS1?50380
    YE4-280M1-44110195.0 1490700.3 96.3 0.89 80 IP55FS1?50380
    YE4-280MX-44132233.8 1490840.4 96.4 0.89 80 IP55FS1?50380
    YE4-315S-44110195.0 1490700.3 96.3 0.89 88 IP55FS1?50380
    YE4-315M-44132233.8 1490840.4 96.4 0.89 88 IP55FS1?50380
    YE4-315L1-44160279.6 14901018.7 96.6 0.90 88 IP55FS1?50380
    YE4-315L12-44185323.0 14901177.8 96.7 0.90 88 IP55FS1?50380
    YE4-315L2-44200349.2 14901273.3 96.7 0.90 88 IP55FS1?50380
    YE4-315LX1-44220384.1 14901400.7 96.7 0.90 88 IP55FS1?50380
    YE4-315LX2-44250436.5 14901591.7 96.7 0.90 88 IP55FS1?50380
    YE4-355M01-44220384.1 14901400.7 96.7 0.90 92 IP55FS1?50380
    YE4-355M-44250436.5 14901591.7 96.7 0.90 92 IP55FS1?50380
    YE4-355M2-44280488.8 14901782.7 96.7 0.90 92 IP55FS1?50380
    YE4-355L-44315549.9 14902005.5 96.7 0.90 92 IP55FS1?50380
    YE4-355L2-44355633.9 14902260.2 96.7 0.88 92 IP55FS1?50380
    YE4-355X1-44355633.9 14902260.2 96.7 0.88 92 IP55FS1?50380
    YE4-355X2-44375669.6 14902387.5 96.7 0.88 92 IP55FS1?50380
    YE4-400M1-44355633.9 14902260.2 96.7 0.88 93 IP55FS1?50380
    YE4-400M2-44400714.2 14902546.7 96.7 0.88 93 IP55FS1?50380
    YE4-400M3-44450803.5 14902865.0 96.7 0.88 93 IP55FS1?50380
    YE4-400L1-44500892.7 14903183.3 96.7 0.88 93 IP55FS1?50380
    YE4-400L2-44560988.6 14903565.3 96.7 0.89 93 IP55FS1?50380
    YE4-400L3-446301112.2 14904011.0 96.7 0.89 93 IP55FS1?50380
    YE4-450X1-447101253.5 14904520.3 96.7 0.89 95 IP55FS1?50380
    YE4-450X2-448001396.7 14905093.3 96.7 0.90 95 IP55FS1?50380
    YE4-450X3-449001571.2 14905730.0 96.7 0.90 95 IP55FS1?50380
    YE4-450X4-4410001745.8 14906366.7 96.7 0.90 95 IP55FS1?50380
    YE4-90S-660.752.0 9607.2 82.7 0.70 57 IP55FS1Y50380
    YE4-90L-661.12.8 96010.5 84.5 0.70 57 IP55FS1Y50380
    YE4-100L-661.53.7 96514.3 85.9 0.71 61 IP55FS1Y50380
    YE4-112M-662.25.4 94021.0 87.4 0.71 65 IP55FS1Y50380
    YE4-132S-6637.2 97528.7 88.6 0.71 69 IP55FS1Y50380
    YE4-132M1-6649.4 97538.2 89.5 0.72 69 IP55FS1?50380
    YE4-132M2-665.512.8 97552.5 90.5 0.72 69 IP55FS1?50380
    YE4-160M-667.516.4 98071.6 91.3 0.76 73 IP55FS1?50380
    YE4-160L-661123.5 980105.1 92.3 0.77 73 IP55FS1?50380
    YE4-180L-661530.7 985143.3 92.9 0.80 73 IP55FS1?50380
    YE4-180L2-661734.6 985162.4 93.2 0.80 73 IP55FS1?50380
    YE4-180L3-6620.541.1 985195.8 93.6 0.81 73 IP55FS1?50380
    YE4-200L1-6618.537.6 985176.7 93.4 0.80 73 IP55FS1?50380
    YE4-200L2-662244.0 985210.1 93.7 0.81 73 IP55FS1?50380
    YE4-225M-663059.0 985286.5 94.2 0.82 74 IP55FS1?50380
    YE4-250M-663771.7 990353.4 94.5 0.83 76 IP55FS1?50380
    YE4-280S-664586.9 990429.8 94.8 0.83 78 IP55FS1?50380
    YE4-280M-6655104.6 990525.3 95.1 0.84 78 IP55FS1?50380
    YE4-315S-6675142.2 990716.3 95.4 0.84 83 IP55FS1?50380
    YE4-315M-6690168.3 990859.5 95.6 0.85 83 IP55FS1?50380
    YE4-315L1-66110205.2 9901050.5 95.8 0.85 83 IP55FS1?50380
    YE4-315L2-66132242.9 9901260.6 96.0 0.86 83 IP55FS1?50380
    YE4-355M1-66160293.8 9901528.0 96.2 0.86 85 IP55FS1?50380
    YE4-355M12-66185339.4 9901766.8 96.3 0.86 85 IP55FS1?50380
    YE4-355M2-66200366.9 9901910.0 96.3 0.86 85 IP55FS1?50380
    YE4-355M3-66220403.2 9902101.0 96.4 0.86 85 IP55FS1?50380
    YE4-355L-66250457.7 9902387.5 96.5 0.86 85 IP55FS1?50380
    YE4-355L2-66280524.3 9902674.0 96.6 0.84 85 IP55FS1?50380
    YE4-355X1-66315604.2 9903008.3 96.6 0.82 91 IP55FS1?50380
    YE4-400M1-66315604.2 9903008.3 96.6 0.82 92 IP55FS1?50380
    YE4-400M2-66355680.9 9903390.3 96.6 0.82 92 IP55FS1?50380
    YE4-400L1-66400758.0 9903820.0 96.6 0.83 92 IP55FS1?50380
    YE4-400L2-66450852.8 9904297.5 96.6 0.83 92 IP55FS1?50380
    YE4-400L3-66500947.5 9904775.0 96.6 0.83 92 IP55FS1?50380
    YE4-450X0-665601048.6 9905348.0 96.6 0.84 95 IP55FS1?50380
    YE4-450X1-666301179.6 9906016.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X2-666701254.5 9906398.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X3-667101329.4 9906780.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X4-667501404.3 9907162.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X5-668001498.0 9907640.0 96.6 0.84 95 IP55FS1?50380
    YE4-100L1-880.752.2 7109.6 78.4 0.66 59 IP55FS1Y50380
    YE4-100L2-881.13.1 71014.0 80.8 0.67 59 IP55FS1Y50380
    YE4-112M-881.54.0 71019.1 82.6 0.69 61 IP55FS1Y50380
    YE4-132S-882.25.7 72528.0 84.5 0.70 64 IP55FS1Y50380
    YE4-132M-8837.6 72538.2 85.9 0.70 64 IP55FS1Y50380
    YE4-160M1-8849.8 73050.9 87.1 0.71 68 IP55FS1?50380
    YE4-160M2-885.513.1 73070.0 88.3 0.72 68 IP55FS1?50380
    YE4-160L-887.517.2 73095.5 89.3 0.74 68 IP55FS1?50380
    YE4-180L-881125.0 735140.1 90.4 0.74 70 IP55FS1?50380
    YE4-200L-881533.3 735191.0 91.2 0.75 73 IP55FS1?50380
    YE4-225S-8818.540.9 740235.6 91.7 0.75 73 IP55FS1?50380
    YE4-225M-882247.8 740280.1 92.1 0.76 73 IP55FS1?50380
    YE4-250M-883063.9 740382.0 92.7 0.77 75 IP55FS1?50380
    YE4-280S-883777.4 740471.1 93.1 0.78 76 IP55FS1?50380
    YE4-280M-884593.9 740573.0 93.4 0.78 76 IP55FS1?50380
    YE4-315S-8855111.5 745700.3 93.7 0.80 82 IP55FS1?50380
    YE4-315M-8875151.2 745955.0 94.2 0.80 82 IP55FS1?50380
    YE4-315L1-8890178.8 7451146.0 94.4 0.81 82 IP55FS1?50380
    YE4-315L2-88110217.9 7451400.7 94.7 0.81 82 IP55FS1?50380
    YE4-315L3-88132260.9 7451680.8 94.9 0.81 82 IP55FS1?50380
    YE4-355M1-88132260.9 7451680.8 94.9 0.81 89 IP55FS1?50380
    YE4-355M2-88160311.7 7452037.3 95.1 0.82 89 IP55FS1?50380
    YE4-355M3-88185359.7 7452355.7 95.3 0.82 89 IP55FS1?50380
    YE4-355L-88200388.5 7452546.7 95.4 0.82 89 IP55FS1?50380
    YE4-355L2-88220432.6 7452801.3 95.4 0.81 89 IP55FS1?50380
    YE4-355X1-88250497.7 7453183.3 95.4 0.80 89 IP55FS1?50380
    YE4-355X2-88315627.1 7454011.0 95.4 0.80 89 IP55FS1?50380
    YE4-400M1-88250497.7 7453183.3 95.4 0.80 91 IP55FS1?50380
    YE4-400M2-88280557.4 7453565.3 95.4 0.80 91 IP55FS1?50380
    YE4-400L1-88315627.1 7454011.0 95.4 0.80 91 IP55FS1?50380
    YE4-400L2-88355706.7 7454520.3 95.4 0.80 91 IP55FS1?50380
    YE4-400L3-88400796.3 7455093.3 95.4 0.80 91 IP55FS1?50380
    YE4-450X1-88450884.8 7455730.0 95.4 0.81 93 IP55FS1?50380
    YE4-450X2-88500983.1 7456366.7 95.4 0.81 93 IP55FS1?50380
    YE4-450X3-885601101.1 7457130.7 95.4 0.81 93 IP55FS1?50380
    YE4-450X4-886301238.7 7458022.0 95.4 0.81 93 IP55FS1?50380



    成年女人黄小视频| 国产免费无遮挡吸奶头视频| 精品国产18久久久久久| 亚洲色欲色欲大片www无码| 亚洲熟妇无码久久精品| 人妻无码aⅴ不卡中文字幕| 高黄暴h日本在线观看| 曝光无码有码视频专区| 亚洲国产精品无码aaa片| 日本强伦姧熟睡人妻完整视频| 免费高清av一区二区三区| 少妇又色又紧又爽又刺激视频| 熟妇人妻av无码一区二区三区| 无遮挡呻吟娇喘视频免费播放| 亚洲国产精品成人久久| 亚洲熟妇无码av| 香蕉伊蕉伊中文视频在线| 色偷偷88888欧美精品久久久 | 九九99久久精品国产| 久久99精品九九九久久婷婷 | 精品无码国产自产野外拍在线| 国产农村妇女毛片精品久久| 欧美国产激情18| 亚洲日韩乱码中文无码蜜桃臀网站| 国产成人精品日本亚洲11| 中文字幕v亚洲日本| 精品国产乱码久久久久久郑州公司| 欧美丰满熟妇bbbbbb百度| 无码一区二区三区老色鬼| 亚洲中文字幕成人无码| 久久久亚洲精品一区二区三区| а√中文在线资源库| 久久久久88色偷偷| 日韩亚洲欧美久久久www综合| 国产人妻高清国产拍精品| www夜插内射视频网站| 亚洲精品蜜桃久久久久久| 欧美三根一起进三p| 亚洲av无码不卡| 国产成人亚洲日韩欧美| 亚洲av无码乱观看明星换脸va|
